SBS series
Stretchbanding with just 1 film reel.

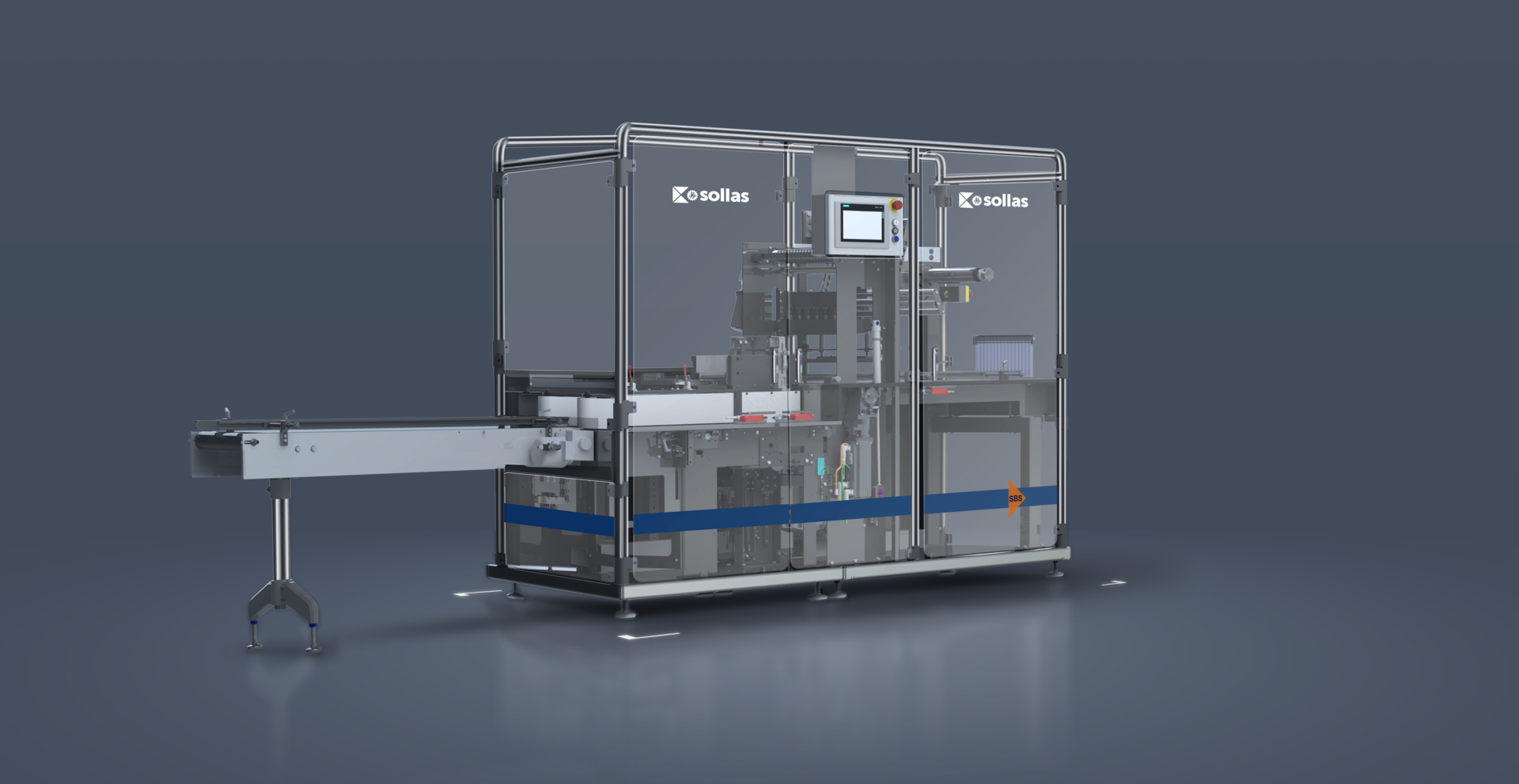

The Sollas SBX is a unique stretchbanding machine. In contrast to other machines, the SBS uses just a single foil reel instead of two. This enables the usage of printed film to wrap products. With a maximum output of 35 products per minute, the SBS is mostly used to bundle products with a PE band. Combined with a shrink tunnel (optional), it is possible to make a bulls-eye side seal.
Direct in line / Direct in line low infeed
In line with cross pusher from right hand side
In line with cross pusher from left hand side
Your benefits
- Tight banding
- Minimum use of change parts
- Speed: up to 35/min
- Large and flexible size range
- Fully servo-driven, for minimal maintenance
- Easy operation through HMI
- Different infeed directions and bundle infeed systems possible
Top 2 features
Touchscreen
The SPP is easy to operate via a Siemens Simatic Touch TP900 HMI touchscreen.
Fully servo driven
Each movement is optimized to reduce the impact on products.
Technical details
| Processes: | PE |
| minimum product size (mm): | L 50 W 40 H 16 |
| maximum product size (mm): | L 500 W 300 H 300 |
| Maximum output: | 35* |
| Film width min/max: | 50 - 420 mm |
| Film-roll diameter max: | 350 mm |
* Depending on product and packaging material. ** In general, all common heat-sealable packaging materials can be used. When in doubt, Sollas will gladly test any material that you which to use.

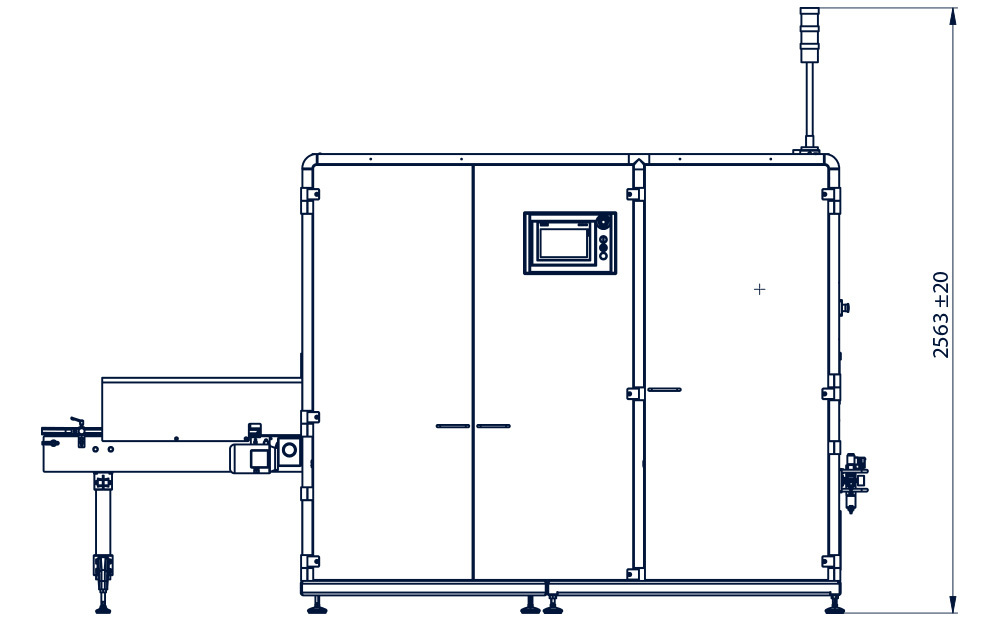

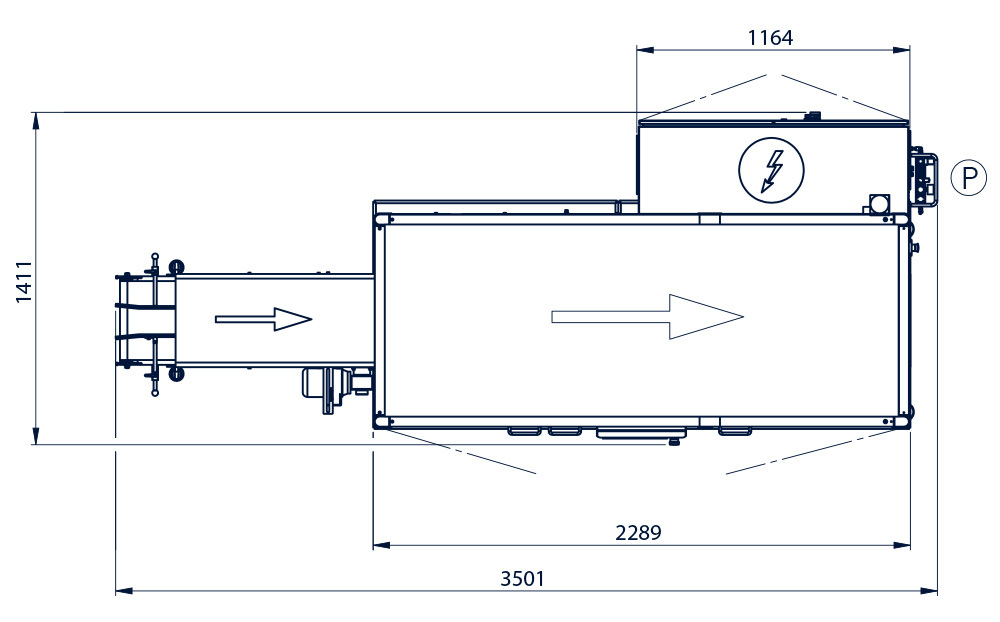

Dimensions
Optionals
- Perforation unit
- Printmark registration
- Several types of bundle infeed systems (tilting, stacking, rotating, and more)
