XE series
Qualitative, modular, and flexible
The Sollas XE is a high quality overwrapping machine that can wrap up to 50 products per minute. The machine has a modular design so it can be combined with several different Sollas infeed accessories. The SE is very flexible and can easily be adjusted to process products of different sizes.
In line with cross pusher from right hand side
In line with cross pusher from left hand side
Direct in line / Direct in line low infeed
At right angles right hand side
At right angles left hand side
Your benefits
- High-quality and reliable overwrapping machine
- Trailing edge seal, so no seal on display side
- Easy to operate with HMI touchscreen
- Combines excellent wrapping quality with perfect product presentation, giving the consumer first-user guarantee
- High speed: up to 50/min
- Reliable mechanical drive combined with servo technology for film infeed and product pusher
- Suitable to use with environmental-friendly packaging materials, such as BOPLA, paper, and/or BOPP
- Easy and accessible machine at one level
- Quick and easy product change-over
- Flexible product size range to allow the processing of several different products
- Optional accessories, such as a tear-tape for easy opening
- Different infeed directions and bundle infeed systems possible
Top 4 features

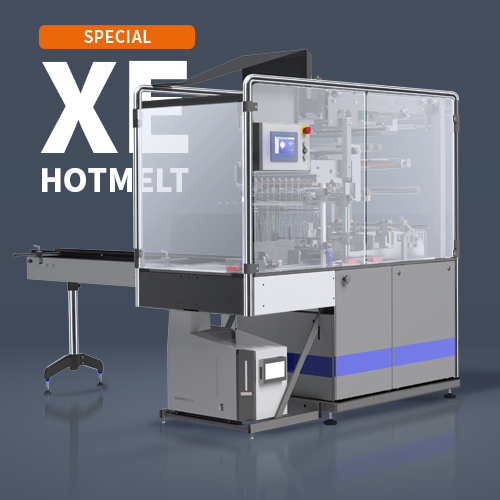

New the XE Hotmelt
The machine is compatible with the Hotmelt accessory. This adhesive unit prints on the paper to be packed the adhesive needed when sealing the package. This eliminates the need for coating and uses no more than necessary glue.
Contact us to find out what we can do for you.
Partly servo-driven
Product pusher and film infeed are servo-driven to reduce impact on products.
Reliable cam-driven movements
Infeed accessories available
Several accessories are available for the infeed of bundles.
Technical details
| Processes: | Polypropyleen, coated paper, recyclable BOPP en biodegradable BOPLA*** |
| minimum product size (mm): | L 45 (35)* W 40 (35)* H 16 (7)* |
| maximum product size (mm): | L 300 (336)* W 225 (240)* H 96 (125/140)* |
| Maximum output: | 50** |
| Film width min/max: | 50 - 420 mm |
| Film-roll diameter max: | 320 |
* Numbers within brackets indication optional changes. ** Depending on product and packaging material. *** In general, all common heat-sealable packaging materials can be used. When in doubt, Sollas will gladly test any material that you which to use.

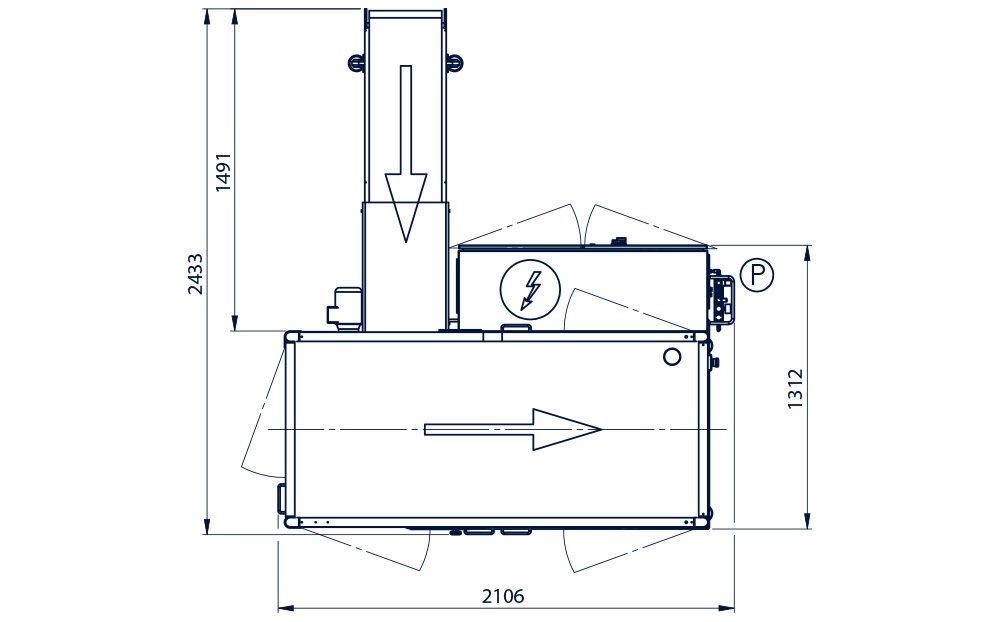

Dimensions
Optionals
- Teartape for easy opening
- Printmark registration
- Felt-lining on contact surfaces (recommended for parfum and cosmetics)
- Spot/stripe seal (parfum and cosmetics)
- Universal folding segment, so no change parts are required
- Individual Product Transport system (IPT)
- Integrated stacking accessory
- Several types of bundle infeed systems possible (tilting, stacking, rotating, and more)
